High speed, high dynamics, high rigidity and durability as well as limited space are just a few of the challenges faced by todays precision industries. PMMR micro slide from PM Bearings pushes boundaries and addresses all of these challenges in the smallest package possible.
Application:
PMMR micro slides are ideal for applications demanding:
- Short stroke lengths
- Low-friction motion
- Oscillating motion
- Precise and accurate motion
- Corrosion resistance
- High rigidity
They are typically used in:
- Medical equipment
- High speed electronic component manufacture
- Laboratory equipment
- Optical devices
- In “cleanroom” environments
- Micro-automation
Specifications:
- Table top, base and cilindrical rollers made of corrosion resistant steel 1.4034, hardened 54 ± 2 HRc.
- Cage made of stainless steel 304
- Anti cage creep mechanism included
- Maximum speed 2 m/s
- Maximum acceleration 200 m/s2
Custom PMMRs:
PMMRs can be manufactured to your specific application. Custom options include:
- Microslides with defined push force
- Additional holes
- Special lubrication
- Customer specific design

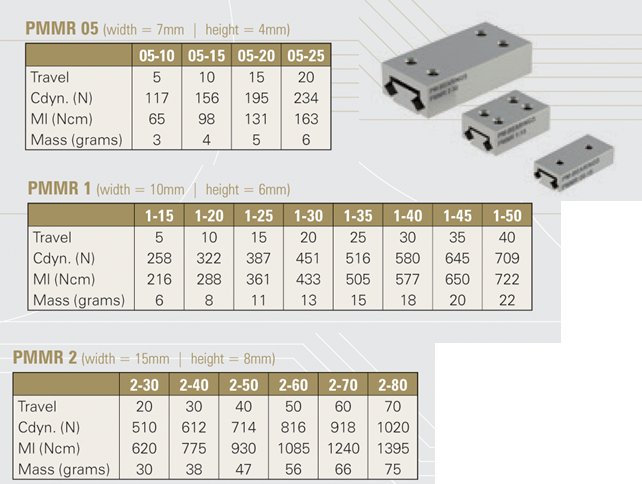

The PMMR Range:
Cdyn = Basic dynamic load rating MI = Longitudinal dynamic moment
For further details or assistance specifying the right PMMR Micro Slide for your application contact our sales team.
Disclaimer
The use of this news article and images came with permission from PM.
