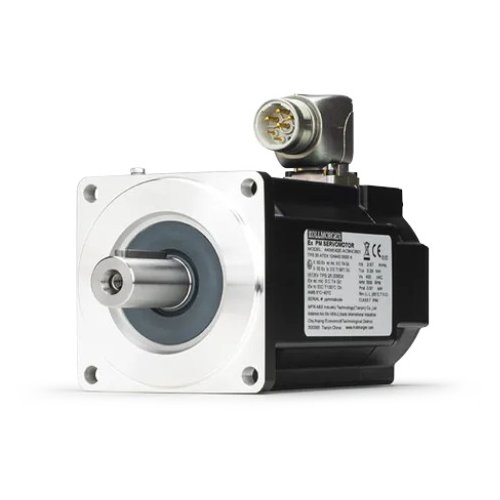

AKME Series – Explosion Proof (ATEX and IECEx Zone 2 and 22) Servo Motor
Micromech supplies Kollmorgen AKME servo motors designed for hazardous location and ATEX-certified motion control applications. Built on the proven AKM servo motor platform, AKME motors deliver high-performance motion control, precision feedback, and reliable operation in Zone 2 and Zone 22 environments where explosive gases or combustible dusts may occasionally be present.
Kollmorgen AKME servo motors are high-performance servo motors designed for precision motion control in hazardous industrial environments requiring ATEX and IECEx certification.
Built on the proven Kollmorgen AKM servo motor platform, the AKME range combines compact dimensions, high torque density and precise servo performance with design features that enable operation in Zone 2 gas and Zone 22 dust environments where explosive atmospheres may occasionally be present.
Available in multiple frame sizes, AKME servo motors support 75 VDC, 120 VAC, 240 VAC and 400 VAC systems, with speeds up to 5,000 rpm and continuous torque ratings up to 50.4 Nm. This provides a broad range of motor options for hazardous-area machinery requiring accurate and responsive motion control.
A wide selection of feedback options is available, including SFD-M, Hiperface DSL, resolver, Comcoder, EnDat 2.2 and BiSS B, providing flexibility for different control and positioning requirements. The motors are compatible with Kollmorgen AKD, AKD2G and Kollmorgen Essentials™ servo drives, enabling integration into complete Kollmorgen motion control systems.
With IP64 protection and compatibility with standard Kollmorgen motor cables, AKME servo motors are suitable for demanding applications including pharmaceutical production, food processing, grain handling, chemical processing, paint and coating systems, packaging machinery and other automation equipment operating in ATEX-regulated environments.
Micromech supplies Kollmorgen AKME hazardous environment servo motors as part of its range of servo motors, drives and motion control solutions for UK OEMs and machine builders.
Need Help Selecting the Right Hazardous Environment Servo Motor?
Micromech can help specify the right Kollmorgen AKME servo motor for your application, including torque, speed, voltage, feedback and hazardous-area requirements. Talk to an Expert to discuss your requirements.
Features
- ATEX and IECEx certified for Zone 2 gas and Zone 22 dust environments
- Built on the proven Kollmorgen AKM servo motor platform
- Continuous torque up to 50.4 Nm
- Peak torque up to 143 Nm, model dependent
- Speeds up to 5,000 rpm
- Supports 75 VDC, 120 VAC, 240 VAC and 400 VAC systems
- Compatible with AKD, AKD2G and Kollmorgen Essentials™ servo drives
- Single- and dual-connector feedback device options
- Feedback options include SFD-M, Hiperface DSL, resolver, Comcoder, EnDat 2.2 and BiSS B
- IP64 environmental protection
- Standard Kollmorgen motor cable compatibility from 1–25 m
- Compact, high torque density motor design
- Reliable operation in hazardous industrial environments
- Suitable for explosive gas and combustible dust applications
- Flexible integration into industrial automation systems
Specifications
| Specification | Details |
|---|---|
| Motor Type | Permanent magnet brushless AC servo motor |
| Series | AKME |
| Hazardous Area Certification | ATEX and IECEx |
| Hazardous Area Classification | Zone 2 gas and Zone 22 dust |
| Continuous Torque | Up to 50.4 Nm |
| Peak Torque | Up to 143 Nm, model dependent |
| Maximum Speed | Up to 5,000 rpm |
| Voltage Options | 75 VDC, 120 VAC, 240 VAC and 400 VAC |
| Feedback Options | SFD-M, Hiperface DSL, resolver, Comcoder, EnDat 2.2 and BiSS B |
| Connector Options | Single- and dual-connector configurations |
| Protection Rating | IP64 |
| Compatible Servo Drives | Kollmorgen AKD, AKD2G and Kollmorgen Essentials™ |
| Motor Cable Lengths | Standard Kollmorgen motor cables from 1–25 m |
| Motor Platform | Based on the Kollmorgen AKM servo motor platform |
| Applications | Hazardous-area machinery, industrial automation and precision motion control |
Certifications
ATEX and IECEx Zone 2/Zone 22 certified
