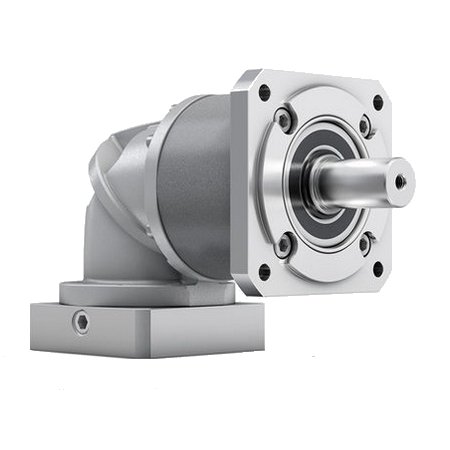

CPSK Bevel Gearbox
The Wittenstein CPSK bevel gearbox with output shaft is available both with long centering and with a replaceable B5 output flange. These two output options open up new opportunities for machine design in applications with medium requirements for positioning accuracy.
| CPSK |
||
| Version | MF | |
| Ratio | i | 3 - 100 |
| Number of sizes | 3 | |
| Max. backlash | jt [arcmin] | Standard < 15 |
| Max. torque | T2a [NM] | 33-272 |
| Max. input speed | n1Max [rpm] | 5000 |
Certifications
UKCA Certified
