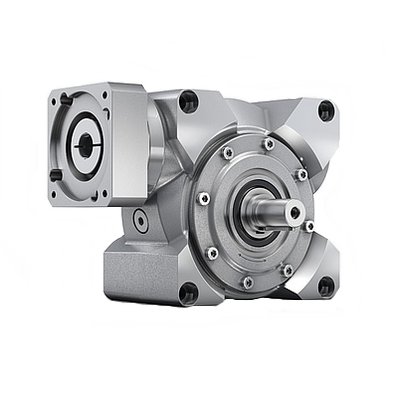

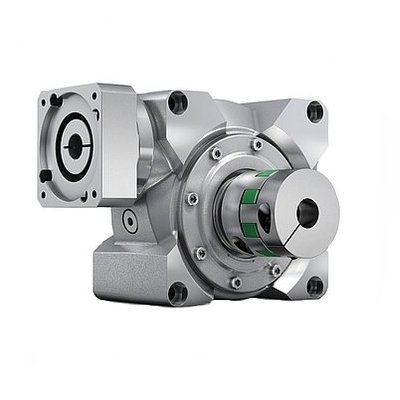

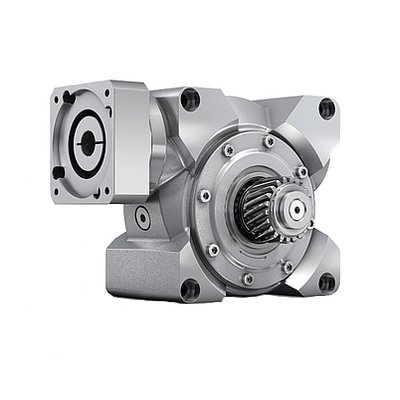

CVS Worm Gearbox
The CVS worm gearbox of the V-Drive Basic family features an optimized output bearing tailored to the most diverse areas of application. Due to a very long operating noise together with a top price/performance ratio, this gearbox is particularly suitable for continuous operation.
| CVS | ||
| Version | MF/MT | |
| Ratio | i | 7 - 40 |
| Number of sizes | 3 | |
| Max. torsional backlash | jt [arcmin] | Standard ≤ 15 |
| Max. torque (max. 1000 cycles per hour) |
T2α [Nm] | 68 - 301 |
| Max. input speed | n1Max [rpm] | 6000 |
Certifications
UKCA Certified
