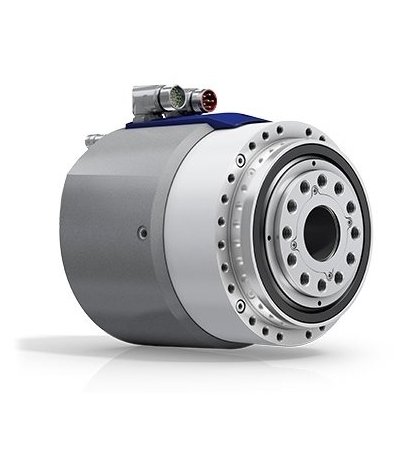

Galaxie® D
The WITTENSTEIN Galaxie® D is a compact, high-performance drive system combining revolutionary Galaxie® gearbox technology with an integrated synchronous servo motor. Delivering permanent zero backlash, exceptional torsional rigidity and outstanding torque density, it provides maximum precision and dynamic performance for demanding motion control applications.
The WITTENSTEIN Galaxie® D is a compact, high-performance drive system combining revolutionary Galaxie® gearbox technology with an integrated synchronous servo motor. Delivering permanent zero backlash, exceptional torsional rigidity and outstanding torque density, it provides maximum precision and dynamic performance for demanding motion control applications.
Integrated High-Performance Drive System
The WITTENSTEIN Galaxie® D combines innovative Galaxie® gearbox technology with an integrated synchronous servo motor to create a compact, high-performance drive system. Designed for applications where precision, efficiency and reliability are critical, it delivers permanent zero backlash, exceptional positioning accuracy and outstanding torsional rigidity.
Engineered for Precision Motion
The integrated design reduces the number of mechanical interfaces while providing smooth, repeatable motion and excellent dynamic performance. A large hollow shaft enables direct routing of cables, shafts and media through the drive system, helping to simplify machine design and improve overall system efficiency.
Optimised for Machine Builders
Developed for machine builders and system integrators, the Galaxie® D offers a compact, maintenance-free solution for demanding motion control applications. Its integrated motor design, exceptional torque density and robust construction make it ideal for applications requiring maximum precision, long-term reliability and efficient use of installation space.
Key Features
- Integrated drive system
- Permanent zero backlash
- Integrated synchronous servo motor
- Exceptional torsional rigidity
- High torque density
- Large hollow shaft
- Maintenance-free operation
- High positioning accuracy
Applications
- Machine tools
- Robotics
- Rotary tables
- Packaging machinery
- Automation systems
- Semiconductor manufacturing
- Precision positioning equipment
- Material handling equipment
- Assembly systems
- CNC machining centres
Need Help Selecting the Right Galaxie® D Drive System?
Whether you're designing a new machine or upgrading an existing system, Micromech can help you select the right WITTENSTEIN Galaxie® D drive system for your application.
Contact us today to speak to one of our motion control specialists for expert advice on product selection and system integration.
Features
- Integrated Drive System – Combines the Galaxie® gearbox and synchronous servo motor into a compact, high-performance actuator.
- Permanent Zero Backlash – Delivers outstanding positioning accuracy and repeatability throughout the system’s service life.
- Exceptional Torsional Rigidity – Provides excellent process stability and dynamic machine performance in demanding applications.
- High Torque Density – Delivers high torque from a compact footprint, enabling efficient machine designs.
- Large Hollow Shaft – Allows direct routing of cables, shafts and media through the drive system, reducing interfaces and simplifying installation.
- Integrated Synchronous Servo Motor – Provides smooth, dynamic motion with a compact, space-saving design.
- Maintenance-Free Operation – Designed for reliable long-term performance with minimal servicing requirements.
- Compact Installation – Optimises machine layouts where high performance and limited installation space are key design requirements.
Downloads
Certifications
UKCA Certified
