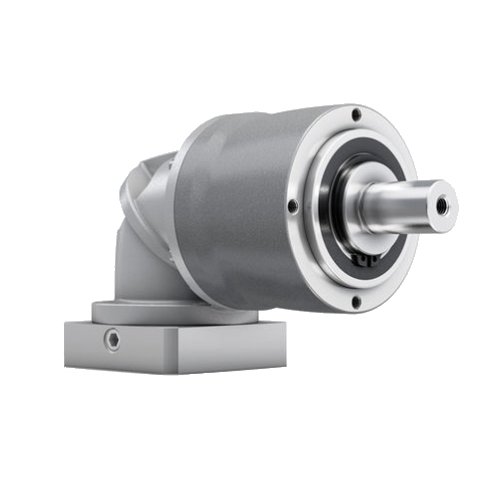

NPK Bevel Gearbox
An extremely compact and high-performance bevel gear stage, an elegant design and unbeatable efficiency in operation are excellent arguments for the Wittenstein NPK bevel gearbox.
| NPK |
||
| Version | MF | |
| Ratio | i | 3 - 100 |
| Number of sizes | 5 | |
| Max. backlash | jt [arcmin] | Standard < 11 |
| Max. Torque | T2a [Nm] | 14 - 700 |
| Max. Input Speed | n1Max [rpm] | 5000 |
Certifications
UKCA Certified
