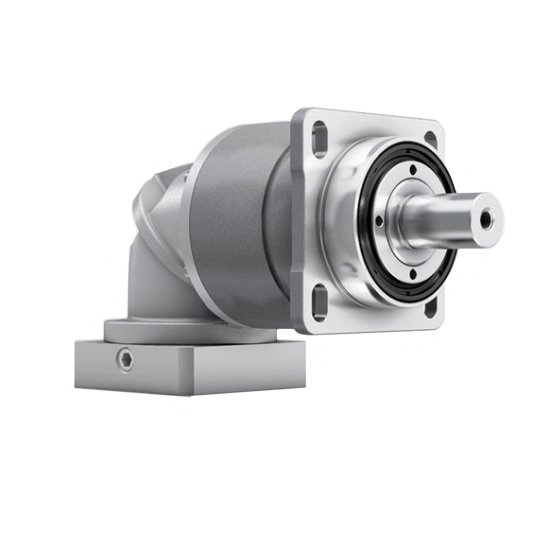

NPRK Bevel gearboxes

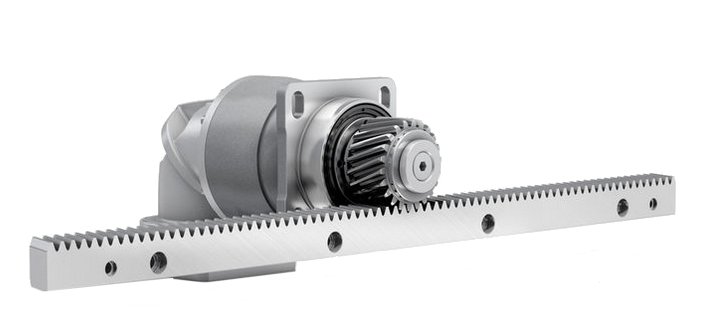

The NPRK bevel gearbox of the alpha Value Line impresses with its slotted holes and is therefore a perfect solution for rack and pinion mounting.
| NPRK |
||
| Version | MF | |
| Ratio | i | 3 - 100 |
| Number of sizes | 4 | |
| Max. backlash | jt [arcmin] | Standard < 11 |
| Max. Torque | T2a [Nm] | 33 - 700 |
| Max. Input Speed | n1Max [rpm] | 5000 |
Certifications
UKCA Certified
