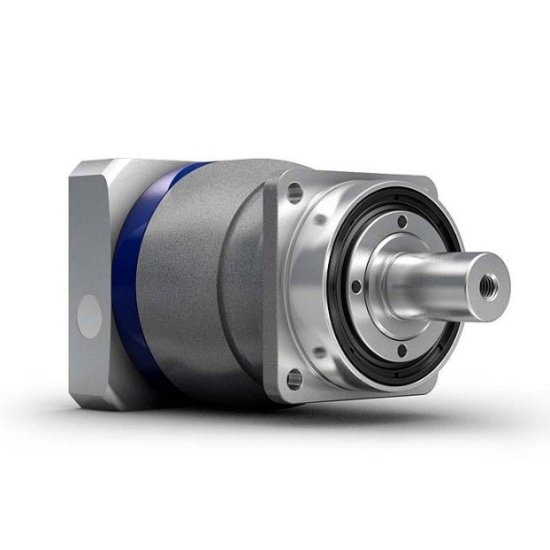

NPS Planetary Gearbox
The proven output geometry of Wittenstein’s bestselling SP gearbox has been adapted for the NPS, making it available in the value segment. Additionally, this planetary gear allows transmission of higher external forces.
Technical Data
| NPS | ||
| Version | MF/MA | |
| Ratio c) | 3-100 | |
| Number of sizes | 4 | |
| Max. backlash c) | jt [arcmin] | Default < 8 |
| Max. torque | T2a [Nm] | 51 - 800 |
| Max. input speed | n1Max [rpm] | 8,000 |
c) In relation to reference sizes
Certifications
UKCA Certified
