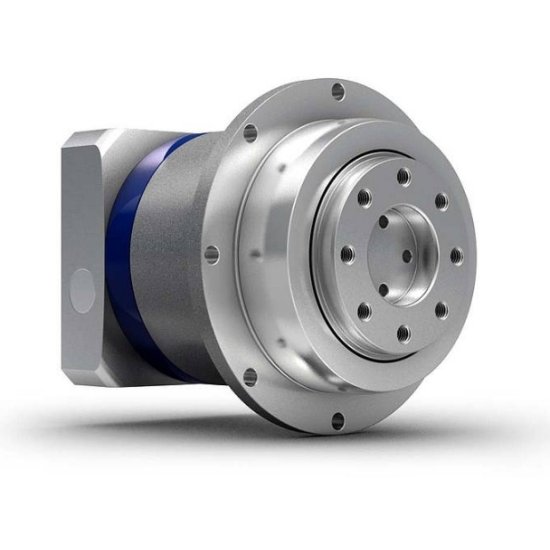

NPT Planetary Gearbox
The low‑backlash NPT planetary gearbox from Wittenstein, with its output flange, uses the well‑known output geometry of the TP gearbox. In its HIGH TORQUE version, it delivers a product with the highest power density available in the value segment.
Technical Data
| NPT | ||
| Version | MF/MA | |
| Ratio c) | 3-100 | |
| Number of sizes | 5 | |
| Max. backlash c) | jt [arcmin] | Default < 8 |
| Max. torque | T2a [Nm] | 18 - 700 |
| Max. input speed | n1Max [rpm] | 10,000 |
c) In relation to reference sizes
Certifications
UKCA Certified
