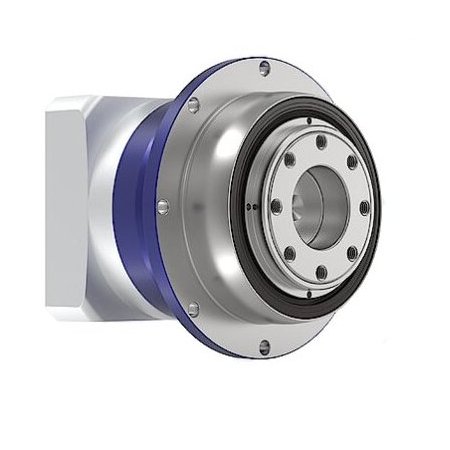

NTP Planetary Gearbox
The NTP planetary gearbox with an output flange features the familiar output geometry of the TP+ gearbox. Its reinforced roller bearings enable very high external forces to be accommodated. Combined with the new gear tooth design and a backlash of ≤ 5 arcminutes, the NTP delivers unique performance characteristics for its class.
Technical Data
| NTP | ||
| Version | MQ | |
| Ratio c) | 4-100 | |
| Number of sizes | 4 | |
| Max. backlash c) | jt [arcmin] | Standard < 5 |
| Max. torque | T2a [Nm] | 56 - 800 |
| Max. input speed | n1Max [rpm] | 8,000 |
c) In relation to reference sizes
Certifications
UKCA Certified
