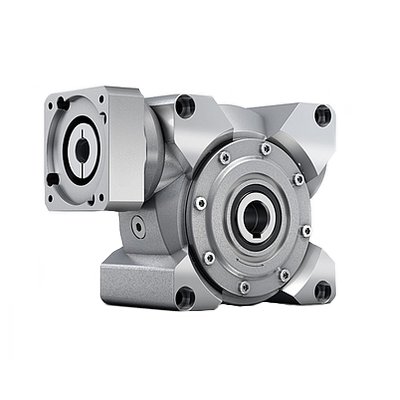

NVH Worm Gearbox
Low backlash servo worm gearbox with hollow shaft. The Wittenstein NVH of the V-Drive Value-family impresses with its high power density and medium torsional backlash. It is especially suitable for economical applications in continuous operation.
| NVH | ||
| Version | MF | |
| Ratio | i | 4 - 400 |
| Number of sizes | 3 | |
| Max. torsional backlash | jt [arcmin] | Standard ≤ 6 |
| Max. torque (max. 1000 cycles per hour) |
T2α [Nm] | 74 - 365 |
| Max. input speed | n1Max [rpm] | 6000 |
Certifications
UKCA Certified
