Rack and Pinion
High-Precision Linear Motion

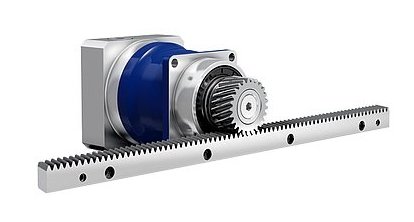

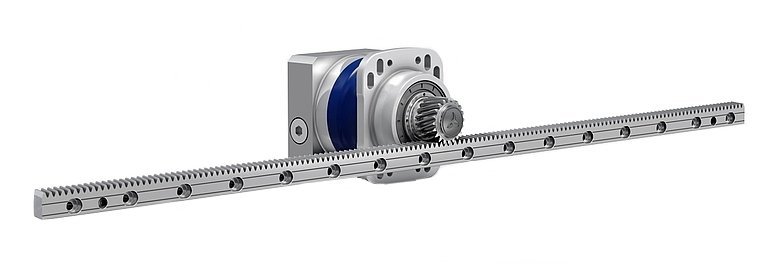

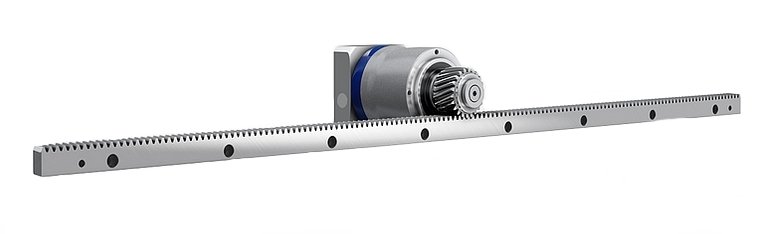

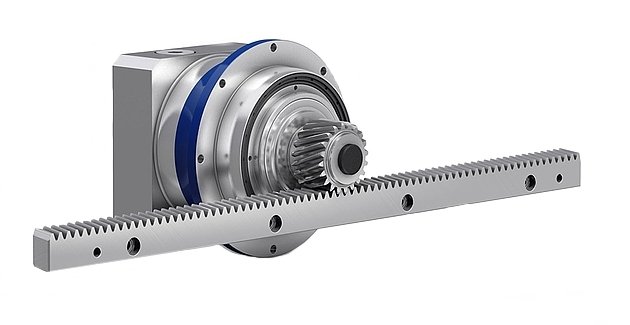

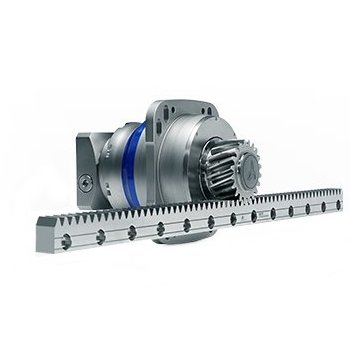

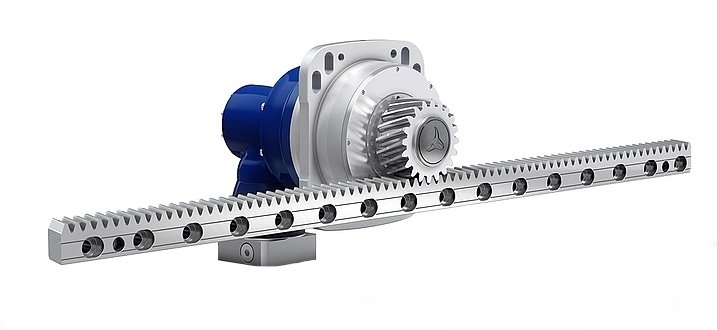

WITTENSTEIN alpha rack-and-pinion systems provide accurate, dynamic and reliable linear motion for industrial automation, handling and machine-tool applications. Supplied as a complete drive solution, each system combines a matched gearbox, pinion, rack and lubrication system to optimise feed force, speed, rigidity and positioning accuracy.
Unlike systems assembled from unrelated components, WITTENSTEIN alpha linear systems are engineered so that each element works together effectively. This helps machine builders achieve the required performance while reducing component-selection risk and simplifying integration.
The portfolio includes planetary, right-angle and servo-worm gearbox options, as well as integrated motor-gearbox units. Different rack, pinion and gearbox combinations support applications ranging from general automation to highly dynamic, high-precision machine axes.
A System for Every Performance Level
WITTENSTEIN alpha linear systems are available across three performance levels:
- Value Linear Systems provide an economical solution for applications with moderate requirements for positioning accuracy, smooth running and feed force.
- Advanced Linear Systems are designed for average to high performance requirements, with gearbox options including HIGH TORQUE and HIGH SPEED configurations.
- Premium Linear Systems provide maximum power density, rigidity and precision for highly dynamic applications and demanding machine-tool axes.
Single-drive and master/slave configurations are available, enabling the system to be adapted to long axes and high-load applications. The modular portfolio supports spur and helical tooth configurations, depending on the selected system.
Simplified Installation and Maintenance
WITTENSTEIN’s INIRA® installation system simplifies rack assembly through integrated clamping, adjustment and pinning features. This helps reduce installation time while supporting accurate alignment between adjoining rack sections.
Matched lubrication components, including lubricating pinions and automatic lubricators, help ensure consistent lubrication throughout operation. This supports reliable performance and helps extend the service life of the rack-and-pinion system.
Typical applications include:
- Machine tools and machining centres
- Gantry and portal systems
- Laser and plasma cutting machines
- Wood, plastic and composite machining
- Industrial robots and seventh axes
- Packaging machinery
- Material-handling systems
- Pick-and-place equipment
- Automated assembly systems
- High-dynamic positioning axes
Need help specifying the right linear system?
Micromech can help select and size the appropriate WITTENSTEIN alpha gearbox, pinion, rack and lubrication system based on your required feed force, travel speed, positioning accuracy, rigidity and axis length. Talk to an Expert
Features
- Complete matched rack-and-pinion drive systems
- Value, Advanced and Premium performance levels
- High positioning accuracy and repeatability
- High feed forces and travel speeds
- High system rigidity and power density
- Smooth, dynamic linear movement
- Suitable for short- and long-travel axes
- Spur and helical tooth configurations available
- Planetary, right-angle and servo-worm gearbox options
- Integrated motor-gearbox units available
- Single-drive and master/slave configurations
- Modular gearbox, pinion and rack combinations
- HIGH TORQUE and HIGH SPEED options
- INIRA® clamping, adjustment and pinning system
- Matched automatic lubrication systems available
- Sizing support using WITTENSTEIN cymex® software
- Suitable for new machinery and existing system upgrades
Specifications
| Specification | Range or options |
|---|---|
| System levels | Value, Advanced and Premium |
| Maximum feed force | Up to 112,000 N |
| Maximum feed speed | Up to 570 m/min |
| Gearbox technologies | Planetary, right-angle and servo-worm |
| Drive arrangements | Single drive or master/slave |
| Rack tooth forms | Spur or helical, depending on system |
| Pinion connections | Keyed shaft, splined shaft, flange or system output |
| System components | Gearbox, pinion, rack and lubrication system |
| Installation systems | Standard mounting or INIRA® assembly |
| Performance options | HIGH TORQUE and HIGH SPEED configurations |
| Lubrication options | Manual or automatic lubrication systems |
| System sizing | Application-specific sizing using cymex® |
Maximum feed force, speed, rigidity and positioning accuracy depend on the selected gearbox, ratio, pinion, rack and drive arrangement.
The principal system ranges include:
- Value Linear Systems: up to 8,000 N and 400 m/min
- Advanced Linear Systems: up to 21,000 N and 570 m/min
- Premium Linear Systems: up to 112,000 N and 333 m/min
Refer to the catalogue or request application-specific sizing before selecting the final system configuration.
Downloads
Certifications
UKCA Certified
