RTA SC32 Series Electric Cylinders for Stepper Motors
The RTA SC32 Series electric cylinders provide compact, precise linear motion for industrial automation. Designed for stepper motors, they offer up to 200 N force, speeds up to 250 mm/s and stroke lengths from 50 to 200 mm.

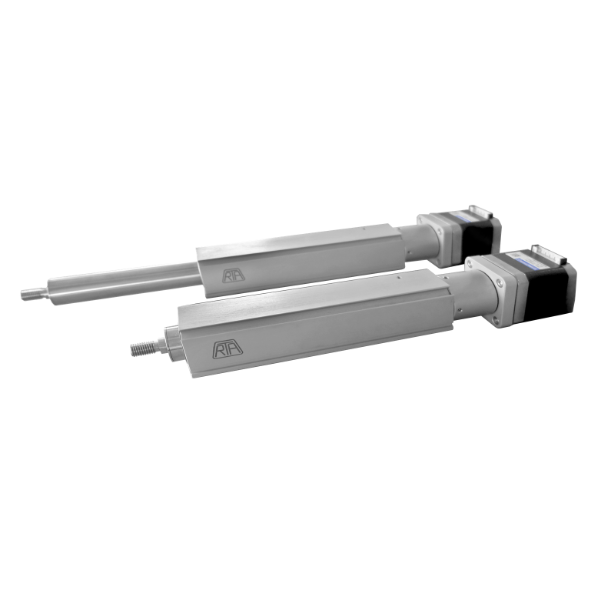

The RTA SC32 Series electric cylinders are designed to provide precise, reliable and efficient linear motion for industrial automation applications. Combining a compact design with stepper motor technology, the SC32 Series offers easy integration into automated machinery where controlled linear positioning is required.
The SC32 uses a precision ball screw and provides a maximum force of 200 N, maximum speed of 250 mm/s and positioning repeatability of ±0.025 mm. Standard stroke lengths of 50, 100, 150 and 200 mm are available, allowing the cylinder to suit a range of positioning and linear motion requirements.
Designed for demanding automation environments, the SC32 features integrated anti-rotation and protection up to IP65. The cylinder can be configured with or without an incremental encoder, with the encoder version providing a resolution of 400 CPR.
Optional accessories include a front brake, rear clevis and sensors, providing additional flexibility when integrating the cylinder into a machine or automation system.
The SC32 Series can be combined with RTA CSD Series stepper motor drives, supporting EtherCAT, Step & Dir, Modbus TCP/IP and EtherNet/IP communication options.
Need help selecting the right electric cylinder for your application?
Micromech can help you select the appropriate RTA SC32 Series configuration, drive and accessories for your motion control requirements.
Features
- Compact electric cylinder designed for stepper motors
- Precision ball screw transmission
- Maximum force of 200 N
- Maximum speed of 250 mm/s
- 50, 100, 150 and 200 mm stroke lengths
- Positioning repeatability of ±0.025 mm
- 8 mm ball screw diameter with 5 mm lead
- Thrust capacity up to 20 kg
- Protection up to IP65
- Integrated anti-rotation
- NEMA 17 stepper motor
- Available with or without incremental encoder
- 400 CPR incremental encoder option
- Optional front brake
- Rear clevis and sensors available as accessories
- Compatible with RTA CSD Series stepper motor drives
Specifications
| Specification | SC32 Series |
|---|---|
| Screw Type | Ball screw |
| Maximum Force | 200 N |
| Maximum Speed | 250 mm/s |
| Stroke Lengths | 50, 100, 150, 200 mm |
| Screw Diameter | 8 mm |
| Screw Lead | 5 mm |
| Position Repeatability | ±0.025 mm |
| Thrust Capacity | 20 kg |
| IP Protection Class | Up to IP65 |
| Integrated Anti-Rotation | Yes |
| Motor Size | NEMA 17 |
| Bipolar Holding Torque | 43 Ncm |
| Encoder Option | Incremental encoder |
| Encoder Resolution | 400 CPR |
| Front Brake | Optional |
| Brake Static Torque | 20 Ncm |
| Suggested RTA Drive | CSD Series |
| Drive Supply Voltage | 24–85 VDC |
| Drive Peak Current | 8 A |
| Communication Options | EtherCAT, Step & Dir, Modbus TCP/IP, EtherNet/IP |
