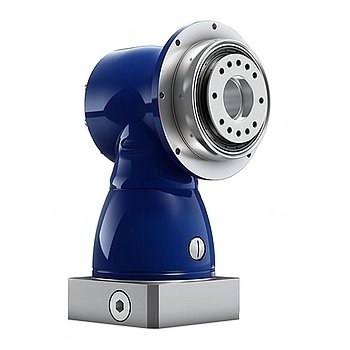

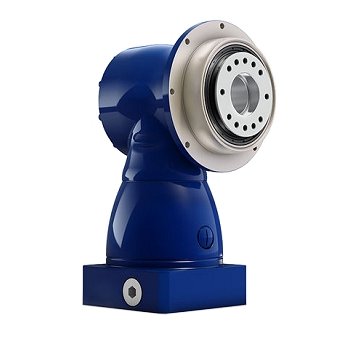

TK+ Hypoid Gearbox

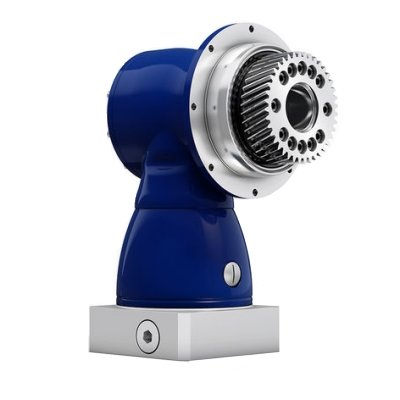

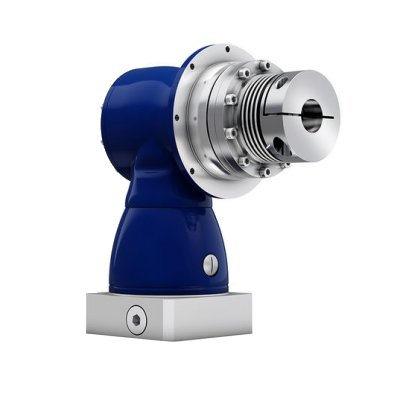

The representatives of our Wittenstein versatile hypoid gearboxes with TP+ compatible output geometry and optional hollow shaft. TK+ gearboxes are appreciated for their high precision and efficiency as well as the possibility to combine different options for the gearbox output. One of those options is mounting of a ball screw. With an optional planetary pre-stage it is possible to reach highest input speeds.
| TK+ | ||
| Version | MF | |
| Ratio | i | 3 - 100 |
| Number of sizes | 5 | |
| Max. torsional backlash | jt [arcmin] | Standard ≤ 4 Reduced - |
| Max. acceleration torque (max. 1000 cycles per hour) |
T2a [Nm] | 20 - 768 |
| Max. input speed | n1Max [rpm] | 7500 |
| Torsional rigidity | Ct21 [Nm/arcmin] | 99 |
| Max. tilting moment | M2KMax [Nm] | 3213 |
Certifications
UKCA Certified
