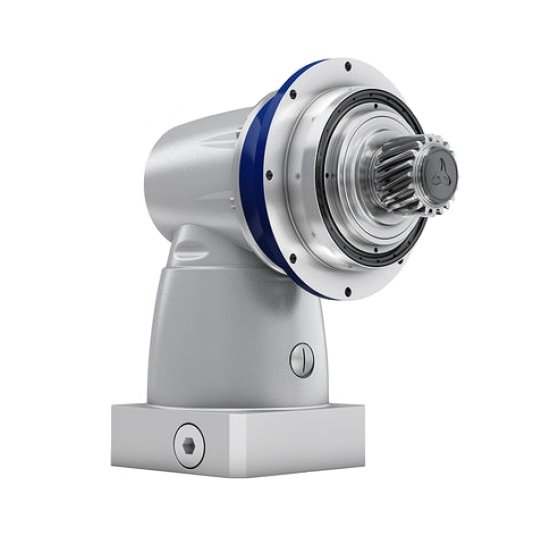

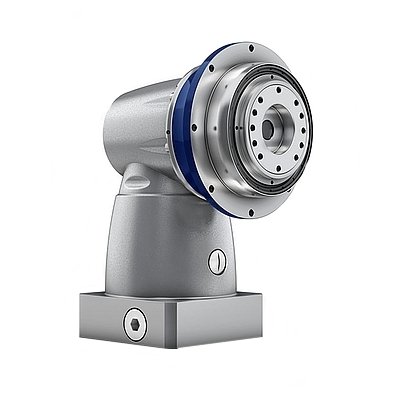

TPC+ Bevel Gears
Wittenstein’s low backlash right-angle gearboxes with TP+ compatible output flange. With it’s short design in the axial plane the gearbox series TPC+ is used in compact machines. They especially convince in dynamic applications demanding high precision, torque and efficiency.
| TPC+ |
||
| Version | MF | |
| Ratio | i | 4 - 20 |
| Number of sizes | 5 | |
| Max. torsional backlash | jt [arcmin] | Standard ≤ 4 |
| Reduced ≤ 2 | ||
| Max. torque | T2B [Nm] | 48 - 2560 |
| Max. input speed | n1Max [rpm] | 6000 |
| Torsional rigidity | nt21 [Nm/arc] | 407 |
| Max. tilting moment | n2KMax [Nm] | 3280 |
Certifications
UKCA Certified
