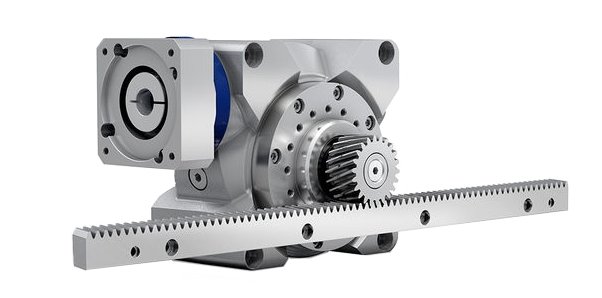

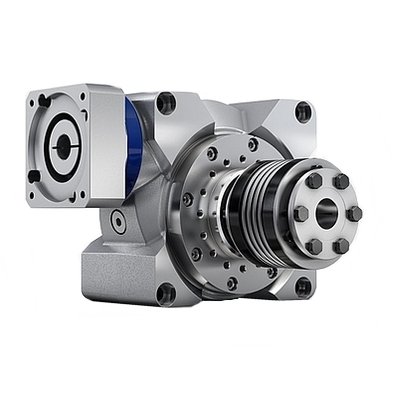

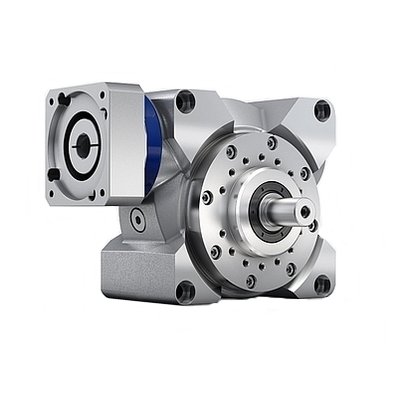

VS+ worm gearbox
The Wittenstein VS+ worm gearbox of the V-Drive family is characterised by a constantly low backlash. This guarantees consistently high quality with high positioning accuracy over the entire service life of the gear unit.
| Product Type | VS | |
| Version | MF | |
| Ratio c) | i | 4 - 400 |
| Number of sizes | 4 | |
| Max. torsional backlash | jt [arcmin] | Standard ≤ 3 |
| Reduced ≤ 2 | ||
| Max. torque | T2α [Nm] | 165-1505 |
| Max. input speed | n1Max [rpm] | 6000 |
| Torsional rigidity | Ct21 [Nm/arcmin] | 153 |
| Max. tilting moment | M2KMax [Nm] | 3059 |
c) In relation to reference sizes
Certifications
UKCA Certified
