XPC+ bevel gearbox
The WITTENSTEIN XPC+ is a high-performance bevel gearbox from the alpha Premium Line, combining low backlash, high torsional rigidity and high torque density with a compact right-angle design. Its low gear ratios and flexible output configurations make it ideal for precise motion control where installation space is limited.
High-Performance Right-Angle Gearbox
The WITTENSTEIN XPC+ combines the performance of the XP+ planetary gearbox with precision bevel gearing to provide a compact right-angle drive solution. Low ratios in the bevel stage enable the gearbox to achieve the same overall low ratios as comparable planetary gearboxes while allowing greater flexibility in machine design.
Precision and High Rigidity
Designed for demanding motion control applications, the XPC+ combines consistently low backlash with high torsional rigidity for accurate and repeatable positioning. Maximum torque ranges from 48 to 2,646 Nm, while the gearbox architecture helps reduce heat development within the drive system, supporting improved positioning accuracy.
Compact and Flexible Machine Integration

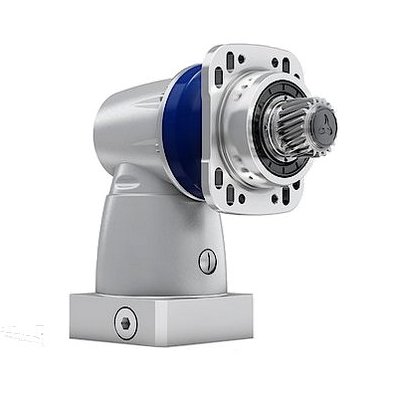

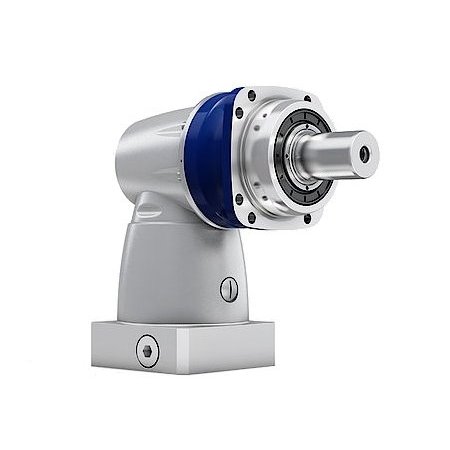

The axially short right-angle configuration allows the XPC+ to be integrated into machines where installation space is restricted. A wide choice of output configurations, including smooth shaft, keyed shaft, splined shaft, blind hollow shaft and system output, provides flexibility for different machine designs and applications.
Key Features
- Precision bevel gearing
- Compact right-angle design
- Ratios from 4 to 20
- Maximum torque up to 2,646 Nm
- Backlash ≤2–4 arcmin
- High torsional rigidity
- High positioning accuracy
- Reduced heat development
- Multiple output configurations
- High axial and radial load capacity
- Rack and pinion compatibility
- Food-grade lubrication option
Applications
- Machine tools
- Rack and pinion systems
- Packaging machinery
- Handling systems
- Robotics
- Cutting machinery
- Woodworking machinery
- Plastics processing machinery
- Precision positioning systems
- Industrial automation
Need Help Selecting the Right XPC+ Bevel Gearbox?
Whether you're designing a new machine or upgrading an existing motion system, Micromech can help you select the right WITTENSTEIN XPC+ bevel gearbox for your application.
Features
- High Torque Density – Delivers high torque from a compact gearbox, helping reduce machine size while maintaining demanding performance.
- Precision Bevel Gearing – Low ratios in the right-angle stage allow the XPC+ to achieve low overall ratios while providing a compact 90-degree drive arrangement.
- Low Backlash – Backlash of ≤2–4 arcmin supports accurate positioning and repeatable motion throughout the gearbox service life.
- High Torsional Rigidity – Provides drivetrain stiffness for precise motion control and improved machine dynamics.
- Compact Right-Angle Design – The axially short configuration enables more compact machine concepts where installation space is limited.
- Reduced Heat Development – The gearbox architecture helps reduce heat build-up within the system, supporting higher overall positioning accuracy.
- Flexible Output Configurations – Available with smooth shaft, keyed shaft, DIN 5480 splined shaft, blind hollow shaft and system output options.

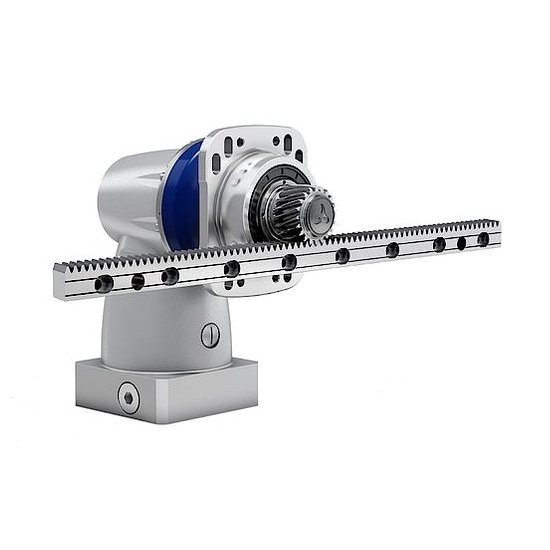

- Rack and Pinion Compatibility – Can be configured for use in precision linear drive systems where accurate positioning and high rigidity are required.
Specifications
| Specification | XPC+ |
|---|---|
| Design | MF |
| Ratio | 4–20 |
| Number of Sizes | 5 |
| Maximum Backlash | ≤2–4 arcmin |
| Maximum Torque | 48–2,646 Nm |
| Maximum Input Speed | 6,000 rpm |
| Torsional Rigidity | Up to 215 Nm/arcmin |
| Maximum Tilting Moment | Up to 3,256 Nm |
Certifications
UKCA Certified
