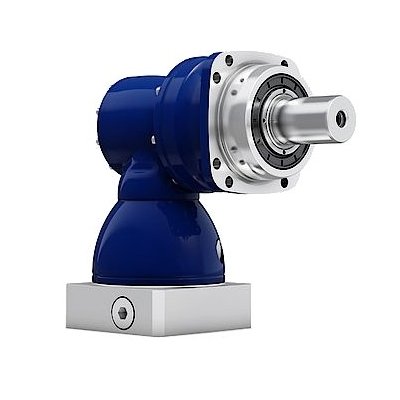

XPK+ hypoid gearbox
The WITTENSTEIN XPK+ is a high-performance hypoid gearbox from the alpha Premium Line, combining high torque density, low backlash and high torsional rigidity with a compact right-angle design. Its wide ratio range and smooth operation make it ideal for precise motion control where installation space is limited.
High-Performance Hypoid Gearbox
The WITTENSTEIN XPK+ combines premium gearbox performance with precision hypoid gearing to provide a compact right-angle drive solution. The axis offset of the hypoid stage enables higher ratios and torque than conventional bevel gearing while maintaining an axially short, space-saving design.
Precision and Smooth Operation
High-quality hypoid gearing, low torsional backlash and high torsional rigidity provide accurate positioning and exceptionally smooth operation. With ratios from 12 to 1,000 and maximum torque up to 2,520 Nm, the XPK+ provides flexible performance for demanding industrial motion applications.
Compact and Flexible Machine Integration
Designed for machine builders requiring maximum performance from limited installation space, the XPK+ offers a range of output configurations including smooth shaft, keyed shaft, splined shaft, blind hollow shaft and system output. High axial and radial load capacity further increases flexibility when integrating the gearbox into demanding machine designs.
Key Features
- Precision hypoid gearing
- Compact right-angle design
- Ratios from 12 to 1,000
- Maximum torque up to 2,520 Nm
- Backlash ≤2–4 arcmin
- High torsional rigidity
- High axial and radial load capacity
- Smooth, quiet operation
- Multiple output configurations
- Suitable for rack and pinion systems
- Food-grade lubrication option
- Integrated slotted-hole flange option
Applications
- Machine tools
- Rack and pinion systems
- Laser processing machinery
- Woodworking machinery
- Plastics processing machinery
- Composite material processing
- Cutting machinery
- Handling systems
- Precision positioning systems
- Industrial automation
Need Help Selecting the Right XPK+ Hypoid Gearbox?
Whether you're designing a new machine or upgrading an existing motion system, Micromech can help you select the right WITTENSTEIN XPK+ hypoid gearbox for your application.
Features
- High Torque Density – Provides high torque transmission from a compact gearbox, supporting space-saving machine designs.
- Precision Hypoid Gearing – High-quality hypoid gearing provides smooth operation while enabling higher ratios within the right-angle gear stage.
- Low Backlash – Available with backlash down to ≤2 arcmin for applications requiring accurate and repeatable positioning.
- High Torsional Rigidity – Provides drivetrain stiffness for precise motion control and improved positioning accuracy.
- Compact Right-Angle Design – The axially short configuration allows the gearbox to be integrated into machines where installation space is restricted.
- High Axial and Radial Load Capacity – The robust output arrangement accommodates demanding external loads while maintaining precise operation.
- Flexible Output Configurations – Available with smooth shaft, keyed shaft, DIN 5480 splined shaft, blind hollow shaft and system output options.

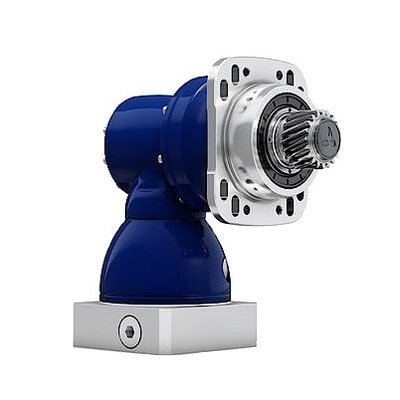

- Rack and Pinion Compatibility – Can be configured with a pinion and slotted-hole flange for integration into precision rack and pinion systems.
Specifications
| Specification | XPK+ |
|---|---|
| Design | MF |
| Ratio | 12–1,000 |
| Number of Sizes | 4 |
| Maximum Backlash | ≤2–4 arcmin |
| Maximum Torque | 80–2,520 Nm |
| Maximum Input Speed | 7,500 rpm |
| Torsional Rigidity | Up to 226 Nm/arcmin |
| Maximum Tilting Moment | Up to 3,256 Nm |
Certifications
UKCA Certified
