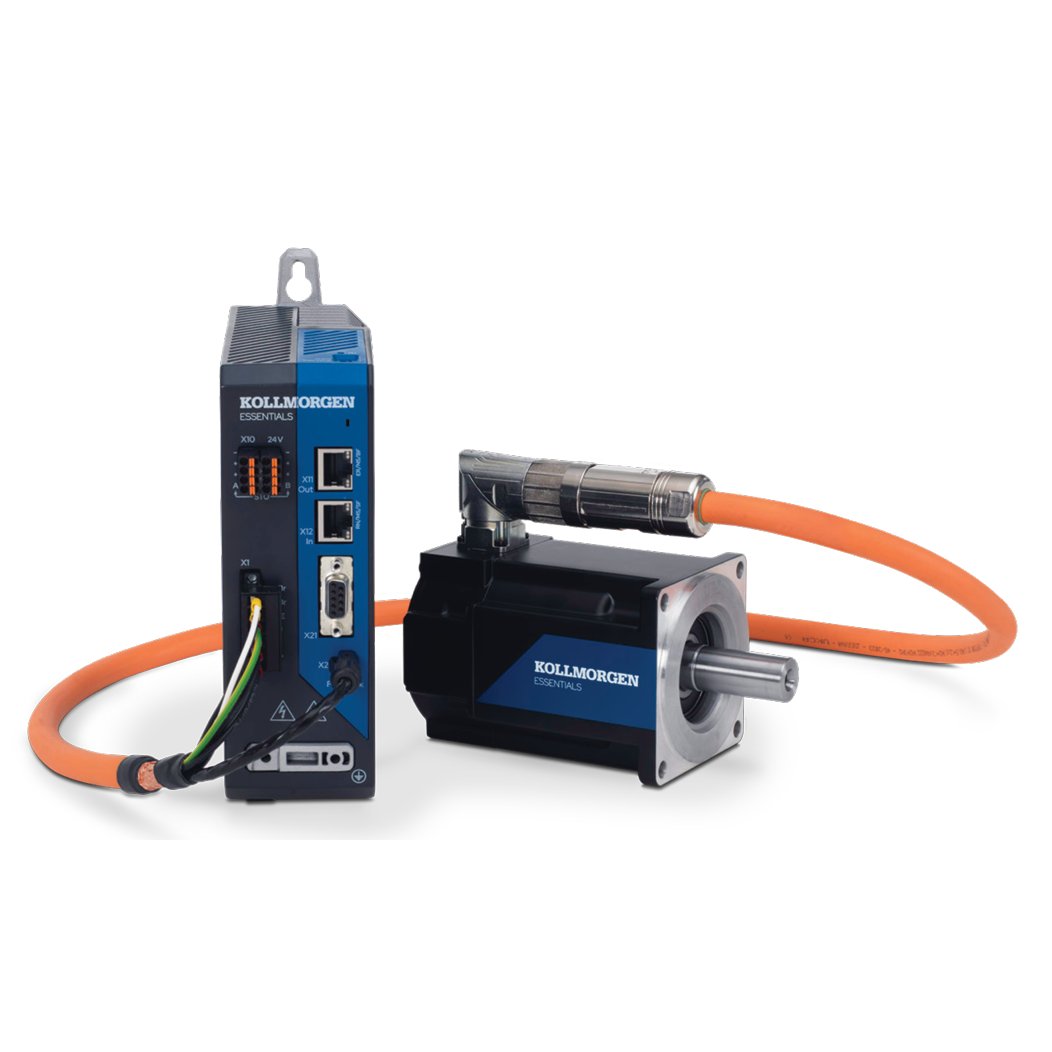

Essentials™ Motion Systems
Micromech supplies Kollmorgen Essentials™ Motion Systems designed to simplify servo motion control integration across industrial automation applications. Combining a matched servo motor, servo drive, and single-cable power/data technology, Kollmorgen Essentials systems provide reliable high-performance motion control with simplified installation, commissioning, and multi-protocol communication flexibility.
Kollmorgen Essentials™ Motion Systems are complete, performance-matched servo motion solutions designed to simplify machine design, installation and commissioning for industrial automation and precision motion control applications.
Each Essentials™ Motion System combines a Kollmorgen Essentials™ servo motor, compact servo drive and single-cable power and feedback technology to provide a coordinated motion solution with simplified system integration. The matched motor and drive platform helps reduce engineering complexity while delivering the precision, torque density and reliability required by OEM machine builders.
The Essentials™ Servo Drive supports EtherCAT®, EtherNet/IP™ and PROFINET® within a single hardware platform, providing flexibility for different industrial control architectures. Multi-axis synchronisation using EtherCAT®, CIP Sync™ and PROFINET IRT enables precise coordinated motion, while integrated dual-channel STO SIL2/Cat 3 PL d functional safety supports machine safety requirements.
Essentials™ Servo Motors are available in power ranges from 200 W to 4,000 W and support 120 VAC, 240 VAC, 400 VAC and 480 VAC systems. Integrated SFD-M multi-turn absolute feedback provides 24-bit single-turn and 16-bit multi-turn resolution, with batteryless energy-harvesting technology eliminating the need for encoder battery backup.
Single-cable power and feedback connectivity, compact components and standardised mounting help simplify machine installation. Configuration and commissioning are streamlined through Express Setup in Kollmorgen WorkBench, with the full WorkBench toolset available for more advanced configuration, tuning and optimisation.
Kollmorgen Essentials™ Motion Systems are suitable for applications including packaging and labelling machinery, warehouse automation, material handling, automated production equipment, printing and converting machinery, machine automation and other industrial motion control systems.
Micromech supplies Kollmorgen Essentials™ Motion Systems as part of its range of servo motors, drives and complete motion control solutions for UK OEMs and machine builders.
Need Help Selecting the Right Motion System?
Micromech can help specify the right Kollmorgen Essentials™ Motion System for your application, including motor power, drive rating, voltage, communication and motion requirements. Talk to an Expert to discuss your requirements.
Features
- Complete matched servo motor, servo drive and cable solution
- Supports EtherCAT®, EtherNet/IP™ and PROFINET® communication protocols
- Multi-axis synchronisation using EtherCAT®, CIP Sync™ and PROFINET IRT
- Integrated dual-channel STO SIL2/Cat 3 PL d functional safety
- Servo motor power range from 200 W to 4,000 W
- Supports 120 VAC, 240 VAC, 400 VAC and 480 VAC systems
- Rated motor speeds of 3,000 rpm, with maximum speeds up to 6,000 rpm
- Integrated SFD-M multi-turn absolute encoder technology
- 24-bit single-turn and 16-bit multi-turn encoder resolution
- Batteryless encoder system using energy-harvesting technology
- Single-cable power and data technology for simplified installation
- Compact servo drive footprint for reduced cabinet space
- Compatible with Kollmorgen WorkBench software
- Simplified commissioning using Express Setup functionality
- Optional integrated 24 VDC holding brake
- Optional regen resistors, line filters and spare drive-side connectors
- DC bus-sharing capability for improved energy efficiency
- High-performance servo control for industrial automation applications
Specifications
| Specification | Details |
|---|---|
| System Type | Matched servo motor, servo drive and cable motion system |
| Motor Power Range | 200 W to 4,000 W |
| System Voltage | 120 VAC, 240 VAC, 400 VAC and 480 VAC |
| Rated Motor Speed | 3,000 rpm |
| Maximum Motor Speed | Up to 6,000 rpm |
| Motor Feedback | SFD-M multi-turn absolute encoder |
| Single-Turn Resolution | 24-bit |
| Multi-Turn Resolution | 16-bit |
| Encoder Technology | Batteryless energy-harvesting technology |
| Drive Communication | EtherCAT®, EtherNet/IP™ and PROFINET® |
| Multi-Axis Synchronisation | EtherCAT®, CIP Sync™ and PROFINET IRT |
| Functional Safety | Dual-channel STO, SIL2 / Cat 3 PL d |
| Cable Technology | Single-cable power and data |
| Holding Brake | Optional integrated 24 VDC holding brake |
| DC Bus | Bus-sharing capability |
| Configuration Software | Kollmorgen WorkBench |
| Commissioning | Express Setup functionality |
| Optional Accessories | Regen resistors, line filters and spare drive-side connectors |
Certifications
UKCA Certified
UL Listed
